GSD Series
The GSD Series pumps, engineered for continuous operation in challenging environments like mega-construction sites and mines, is a robust slurry pump known for its high head and volume discharge capabilities. Facilitating efficient suction of settled slurry, sand, or mud, the pump features an agitator mounted on the motor shaft-end. Additionally, the GSD series incorporates field-adjustable components, enabling swift and easy adjustment of the impeller to the suction plate/ring. This feature ensures the rapid restoration of dropped performance.
Type
Submersible Pumps
Brand
Tsurumi
Power
50-100 hp
Discharge
8-10 in
RPM
1740-1775
Maximum Capacity
2800 gpm
Maximum Pressure
158 ft
| Model | Discharge Size (in) | Motor Output (hp) | Diameter (in) | Height (in) | Max Solid Diameter (in) | Weight (lbs) |
|---|---|---|---|---|---|---|
| GSD-37-4 | 8 | 50 | 36 | 62 5/16 | 0.984 | 1290 |
| GSD-55-4 | 10 | 75 | 41 5/16 | 75 7/8 | 0.984 | 2440 |
| GSD-75-4 | 10 | 100 | 41 5/16 | 75 7/8 | 0.984 | 2690 |

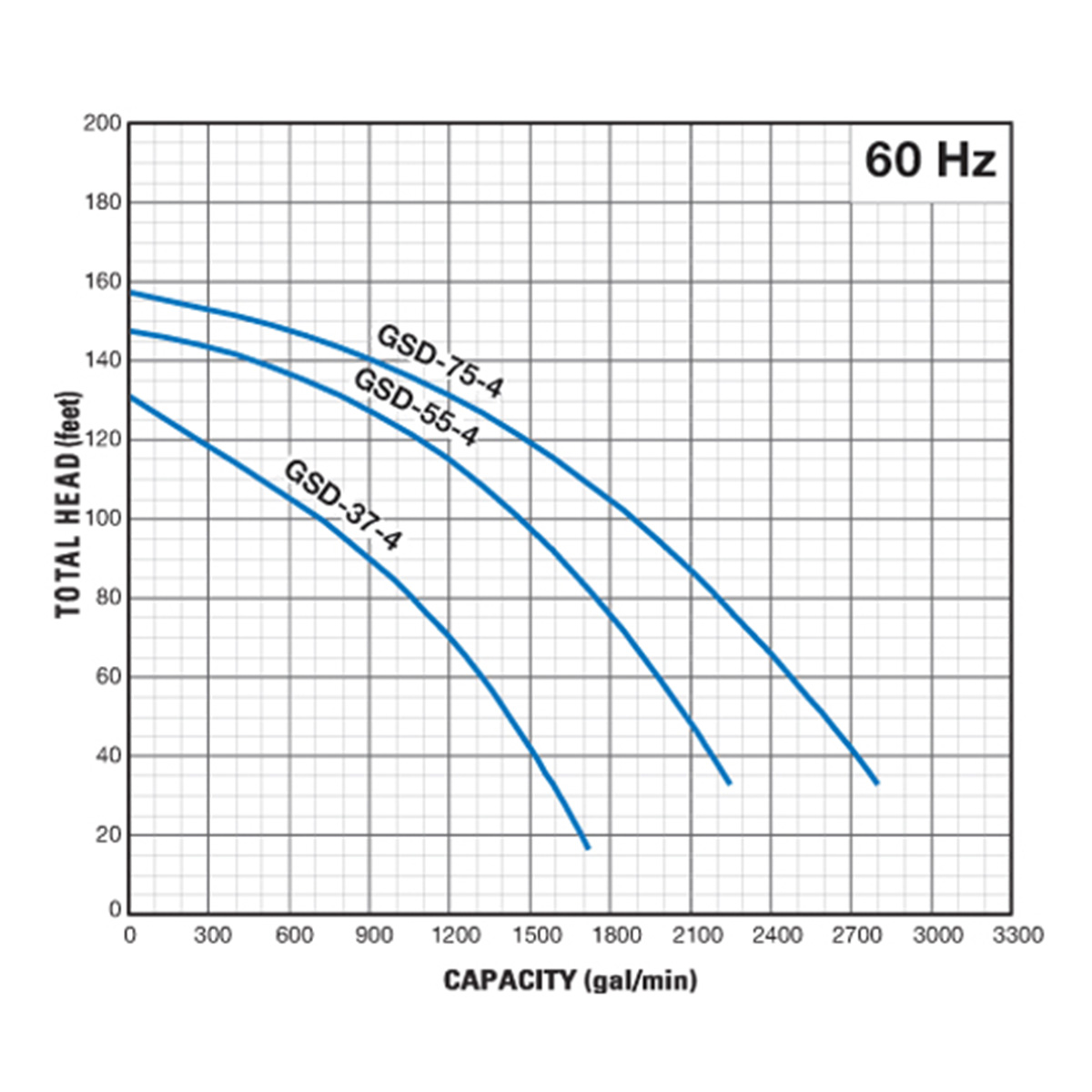

Performance Curves
Dimensional Drawing
Sectional View
