Submersible Pumps
HS Series
Products
Technical specifications
HS Series
Designed for water, wastewater, and light slurry pumping in residential, commercial, industrial, and construction dewatering applications, these submersible trash pumps are durable and available in two sizes: 1HP and 3-inch discharge or 1/2HP and 2-inch discharge.
They are specifically engineered to efficiently pump water containing sand, solids, and debris, ensuring minimal wear and clogging.
Features
- The built-in shaft-mounted agitator is designed to suspend solids effectively;
- The urethane semi-vortex impeller enhances durability and pump performance to the maximum extent;
- Featuring dual inside mechanical seals with SiC faces, the pump ensures the longest operational life;
- The patented Oil Lifter provides lubrication for the seal faces;
- With a V-ring seal design, the mechanical seal is protected from abrasive particles;
- The HSZ Series comes with a float-operated automatic operation version.
Type
Submersible Pumps
Brand
Tsurumi
Power
0.5-1 hp
Discharge
2-3 in
Maximum Capacity
60 gpm
Maximum Pressure
62 ft
| Model | Discharge Size(in.) | Motor Output(hp) | Diameter(in.) | Height (in.) | Max Solid Diameter(in.) | Weight(lbs.) |
|---|---|---|---|---|---|---|
| HS2.4S | 2 | 1/2 | 10 1/16 | 12 15/16 | 0.276 | 25 |
| HSE2.4S | 2 | 1/2 | 13 1/2 | 17 1/2 | 0.276 | 26 |
| HSZ2.4S | 2 | 1/2 | 13 1/2 | 15 1/8 | 0.276 | 30 |
| HS3.75S | 3 | 1 | 12 7/16 | 15 5/16 | 0.276 | 43 |
| HS3.75SL | 3 | 1 | 12 7/16 | 16 3/4 | 0.276 | 50 |
| HSZ3.75S | 3 | 1 | 13 1/2 | 17 1/2 | 0.276 | 50 |
| HSZ3.75SL | 3 | 1 | 15 3/4 | 19 7/8 | 0.236 | 50 |
| HSD2.55S | 2 | 3/4 | 10 3/8 | 15 3/8 | 0.393 | 39 |
Brochures

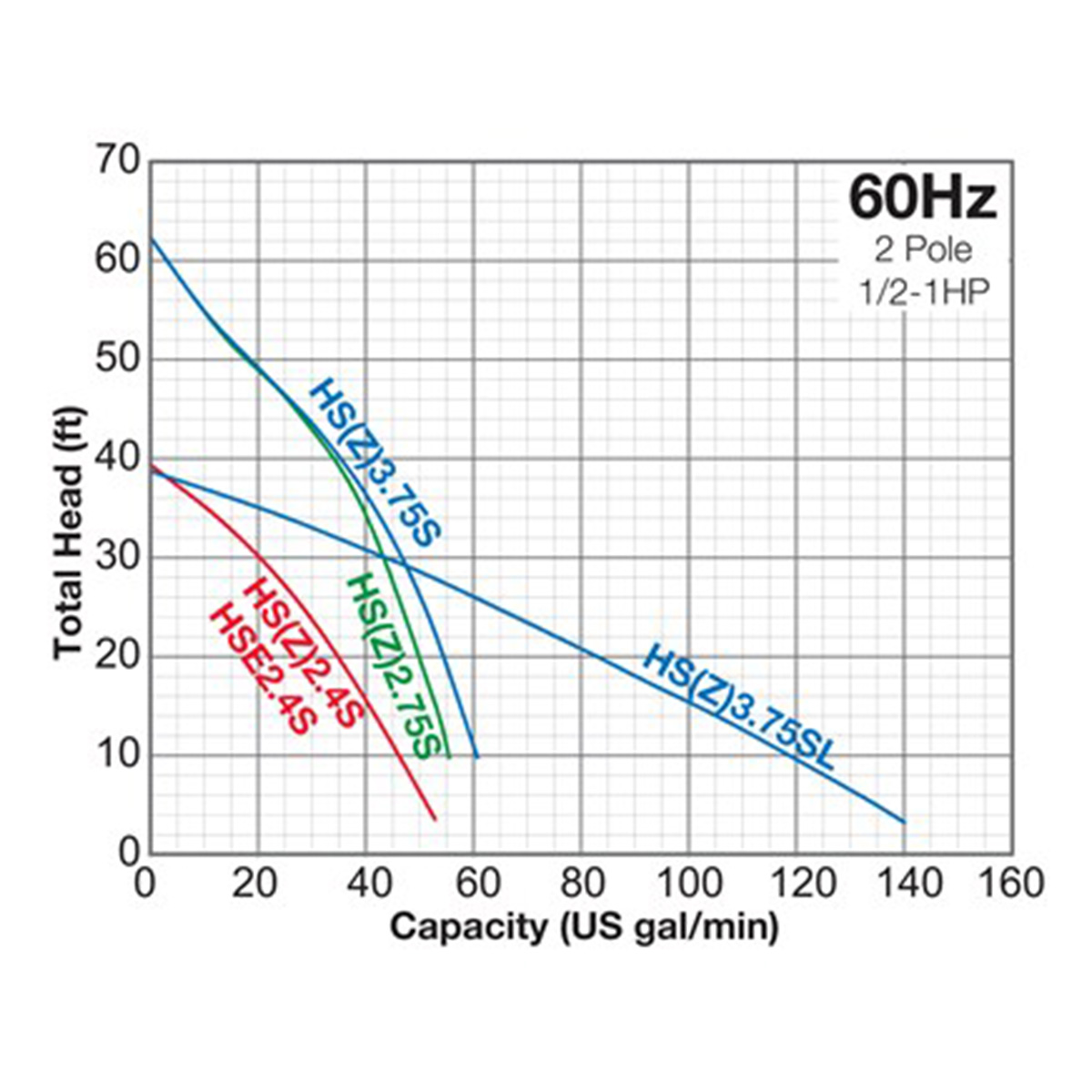

Performance Curves
Dimensional Drawing
Sectional View
Parts List
