Submersible Pumps
KTD Series
Products
Technical specifications
KTD Series
The Tsurumi Agitator Pump KTD Series, built from cast iron and utilizing the KTZ Series as its foundation, features an agitator for facilitating fluid suction, and its side-flow, top-discharge design ensures efficient motor cooling during continuous operation in the air, making it suitable for confined spaces.
Caratéristiques
- Offering discharge sizes ranging from 2 to 3 inches and horsepower spanning from 2.7 to 4 hp.
- Equipped with 2 pole, 3600 rpm motors.
- Constructed with robust cast iron.
- Incorporates dual silicon carbide mechanical seals.
- Includes internal thermal motor protection and Tsurumi's exclusive oil lifter.
- Features an anti-wicking cable entrance.
- Ideal for transferring or draining bentonite slurry in slurry drilling, as well as draining slurry-mixed water in civil engineering or foundation works.
Type
Submersible Pumps
Brand
Tsurumi
Power
2.7-4 hp
Discharge
2-3 in
RPM
3600

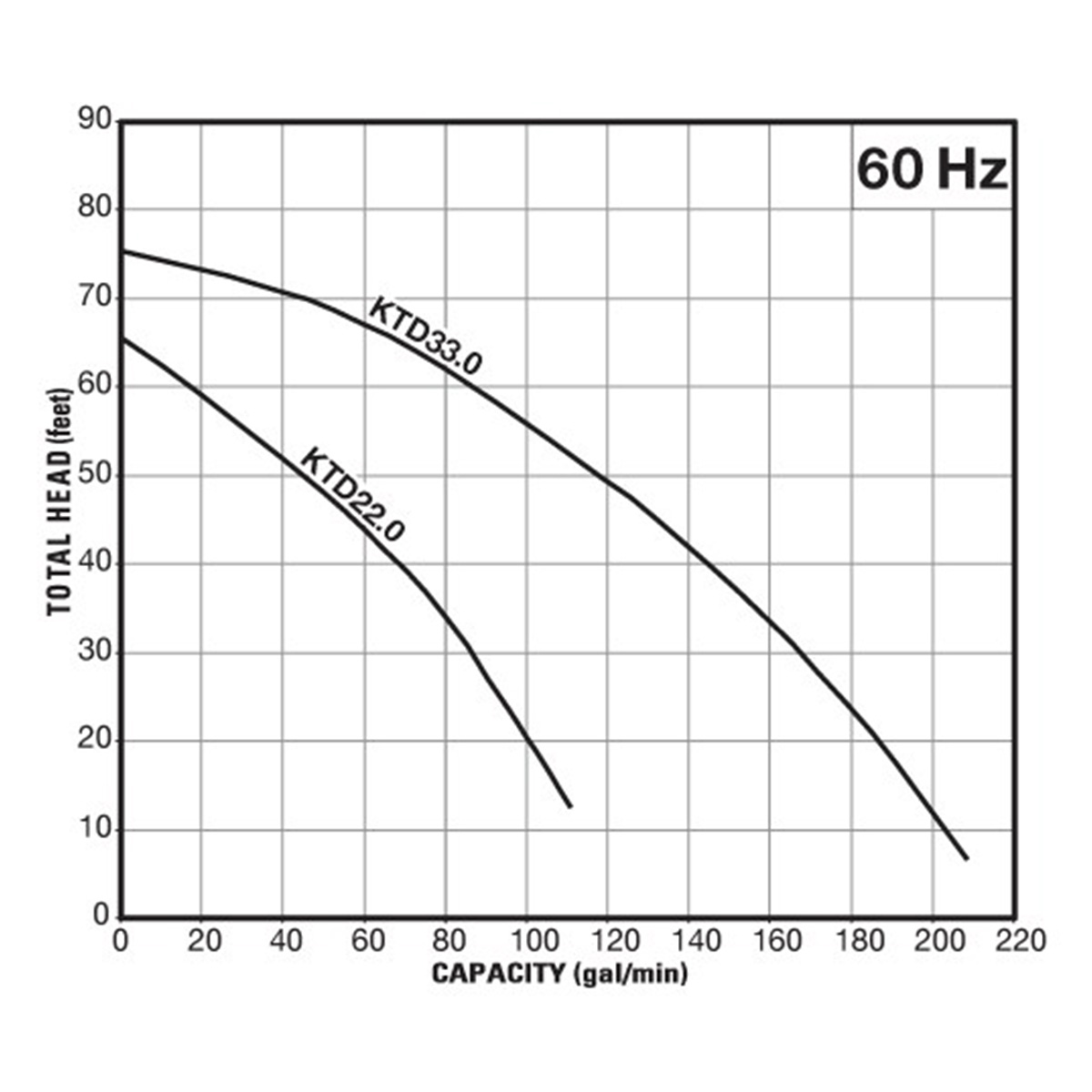

Maximum Capacity
190 gpm
Maximum Pressure
75 ft
| Model | Discharge Size (in) | Motor Output (hp) | Diameter (in) | Height (in) | Max Solid Diameter (in) | Weight (lbs) |
|---|---|---|---|---|---|---|
| KTD22.0 | 2 | 2.7 | 9 1/4 | 23 3/16 | 0.394 | 86 |
| KTD33.0 | 3 | 4 | 11 11/16 | 25 3/4 | 0.394 | 145 |
