Submersible Pumps
KTV(E) Series
Products
Technical specifications
KTV(E) Series
Designed for light to medium-duty applications, KTV and KTVE pumps are wear-resistant, with the KTVE series featuring a level sensor to eliminate the necessity of auto control panels and externally mounted float assemblies; however, it is crucial to avoid using KTVE Series – Electrode style pumps in combination with VFDs, as it may lead to damage to the electrode.
Features
- Offering discharge sizes ranging from 2 to 3 inches and horsepower spanning from 1 to 7.5 hp
- Boasting a lightweight and compact design
- The durable construction ensures low maintenance and easy repair
- Equipped with internal thermal motor protection and dual silicon carbide mechanical seals
- Includes Tsurumi's exclusive oil lifter for enhanced functionality
Type
Submersible Pumps
Brand
Tsurumi
Power
1-7.5 hp
Discharge
2-3 in
RPM
3435
Maximum Capacity
230 gpm
Maximum Pressure
121 ft
| Model | Discharge Size (in) | Motor Output (hp) | Diameter (in) | Height (in) | Max Solid Diameter (in) | Weight (lbs) |
|---|---|---|---|---|---|---|
| KTV2-8 | 2 | 1 | 7 7/8 | 14 1/2 | 0.334 | 25 |
| KTV2-15 | 2 | 2 | 11 1/4 | 15 9/16 | 0.334 | 46 |
| KTV2-22 | 2 | 3 | 11 1/4 | 16 3/8 | 0.334 | 51 |
| KTV2-37H | 2 | 5 | 11 1/4 | 20 1/16 | 0.334 | 79 |
| KTV2-37 | 3 | 5 | 11 1/4 | 20 1/16 | 0.334 | 79 |
| KTV2-55 | 3 | 7.5 | 11 13/16 | 21 7/16 | 0.334 | 104 |
| KTVE2.75 | 2 | 1 | 7 7/8 | 16 7/16 | 0.334 | 28 |
| KTVE21.5 | 2 | 2 | 9 7/16 | 16 3/4 | 0.334 | 48 |
| KTVE22.2 | 2 | 3 | 9 7/16 | 16 3/4 | 0.334 | 55 |
| KTVE33.7 | 3 | 5 | 11 1/4 | 23 1/16 | 0.334 | 88 |
| KTV2-50 | 2 | 2.7 | 9 13/16 | 17 7/8 | 0.334 | 55 |
| KTV2-80 | 3 | 4 | 11 5/8 | 21 5/8 | 0.334 | 84 |

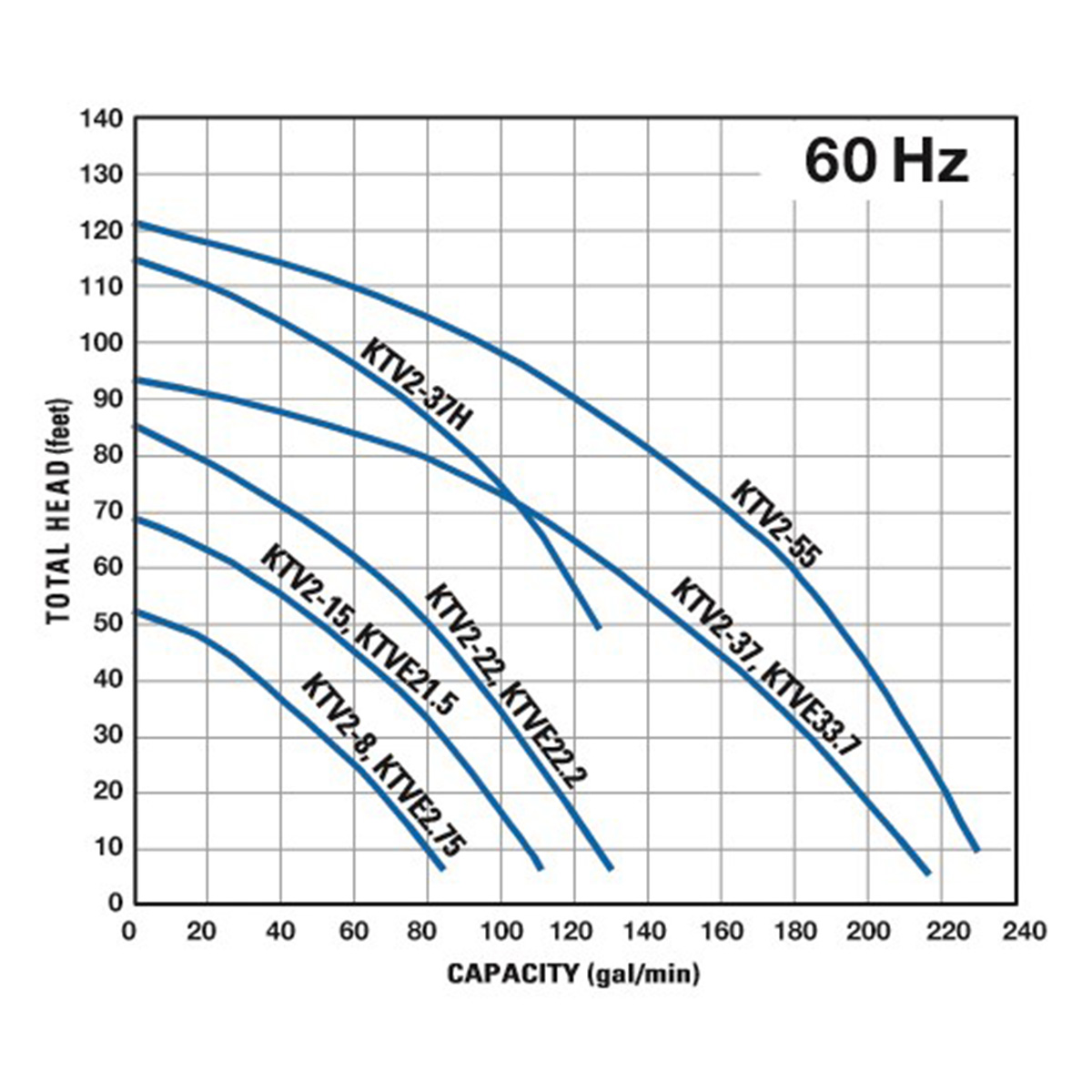

Performance Curves
Dimensional Drawing
Sectional View
Parts List
