Submersible Pumps
KTZ(E) Series
Products
Technical specifications
KTZ(E) Series
KTZ Series pumps are engineered to endure challenging conditions, especially the abrasive waters in construction, aggregate, and mining dewatering. The pumps offer increased versatility, allowing easy conversion between high head and high volume performance by simply changing the impeller and wear plate.
Features
- Discharge sizes range from 2 to 6 inches, and horsepower spans from 2 to 15 hp.
- Achieves higher heads through 2-pole, 3600 rpm motors.
- Superior motor protection with high-pressure rated mechanical seals isolated.
- Sturdy cast iron construction.
- Pressure relief ports and an exclusive oil lifter extend mechanical seal life, preventing premature wear and failure in high head operations.
- Internal thermal motor protection.
- Features an anti-wicking cable entrance.
Type
Submersible Pumps
Brand
Tsurumi
Power
2-15 hp
Discharge
2-6 in
RPM
3400-3520
Maximum Capacity
645 gpm
Maximum Pressure
167 ft
| Model | Discharge Size (in) | Motor Output (hp) | Diameter (in) | Height (in) | Max Solid Diameter (in) | Weight (lbs) |
|---|---|---|---|---|---|---|
| KTZ21.5 | 2 | 2 | 9 1/4 | 25 1/2 | 0.334 | 77 |
| KTZ31.5 | 3 | 2 | 9 1/4 | 25 1/2 | 0.334 | 75 |
| KTZ22.2 | 2 | 3 | 9 1/4 | 26 5/16 | 0.334 | 79 |
| KTZ32.2 | 3 | 3 | 9 1/4 | 26 5/16 | 0.334 | 77 |
| KTZ23.7 | 2 | 5 | 11 1/8 | 26 1/4 | 0.334 | 137 |
| KTZ33.7 | 3 | 5 | 11 1/8 | 26 5/8 | 0.334 | 137 |
| KTZ43.7 | 4 | 5 | 11 1/8 | 27 1/16 | 0.334 | 137 |
| KTZ35.5 | 3 | 7.5 | 12 1/16 | 28 3/8 | 0.334 | 167 |
| KTZ45.5 | 4 | 7.5 | 12 1/16 | 28 3/4 | 0.334 | 170 |
| KTZ47.5 | 4 | 10 | 13 | 31 13/16 | 0.472 | 225 |
| KTZ67.5 | 4 | 10 | 13 | 31 13/16 | 0.787 | 225 |
| KTZ411 | 4 | 15 | 14 3/4 | 32 15/16 | 0.472 | 293 |
| KTZ611 | 4 | 15 | 14 3/4 | 32 15/16 | 0.787 | 295 |
| KTZE21.5 | 2 | 2 | 9 1/4 | 28 11/16 | 0.334 | 81 |
| KTZE31.5 | 3 | 2 | 9 1/4 | 28 11/16 | 0.334 | 79 |
| KTZE22.2 | 2 | 3 | 9 1/4 | 29 7/16 | 0.334 | 88 |
| KTZE32.2 | 3 | 3 | 9 1/4 | 29 7/16 | 0.334 | 86 |
| KTZE23.7 | 2 | 5 | 11 1/8 | 29 7/16 | 0.334 | 163 |
| KTZE33.7 | 3 | 5 | 11 1/8 | 29 13/16 | 0.334 | 163 |
| KTZE43.7 | 4 | 5 | 11 1/8 | 30 3/16 | 0.334 | 163 |

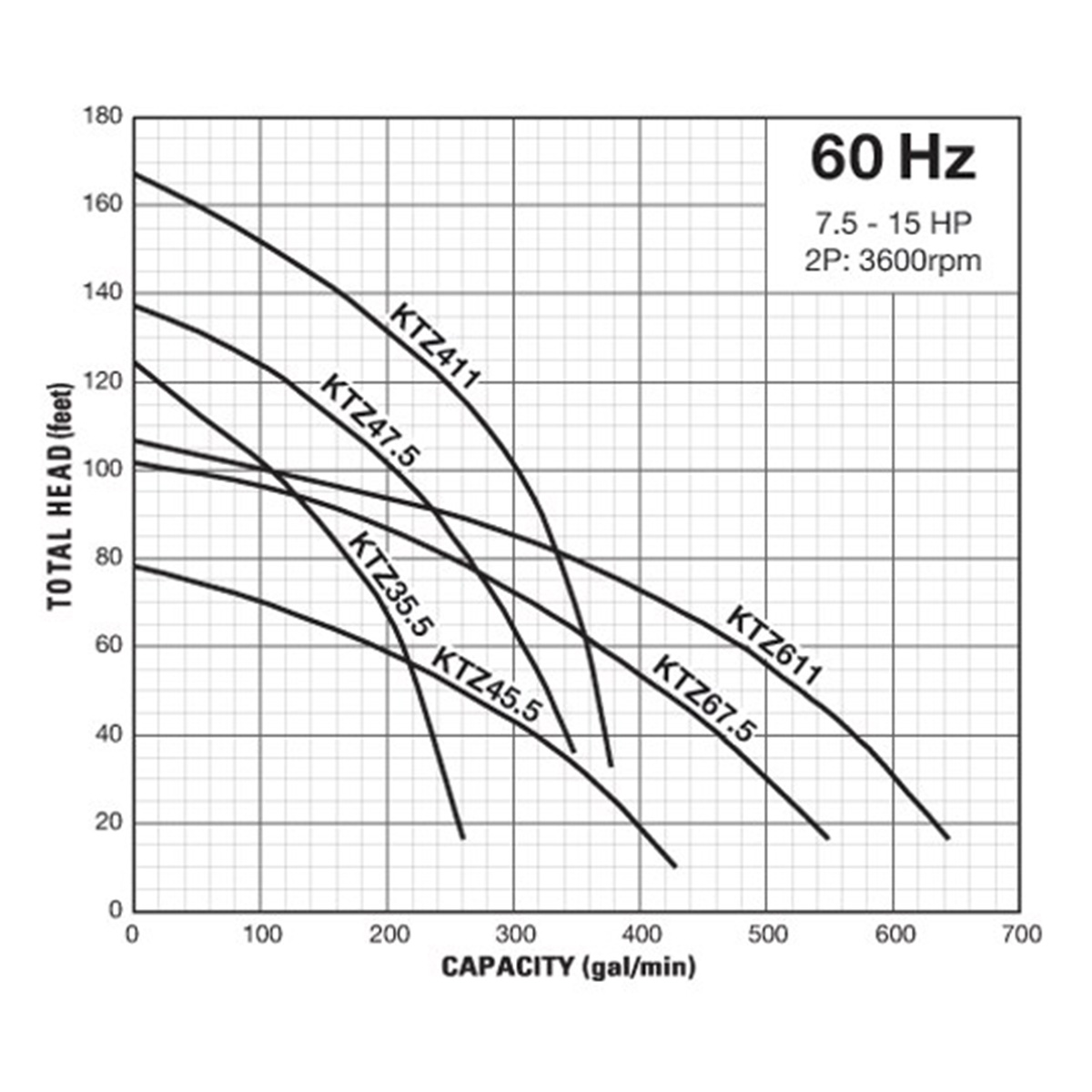

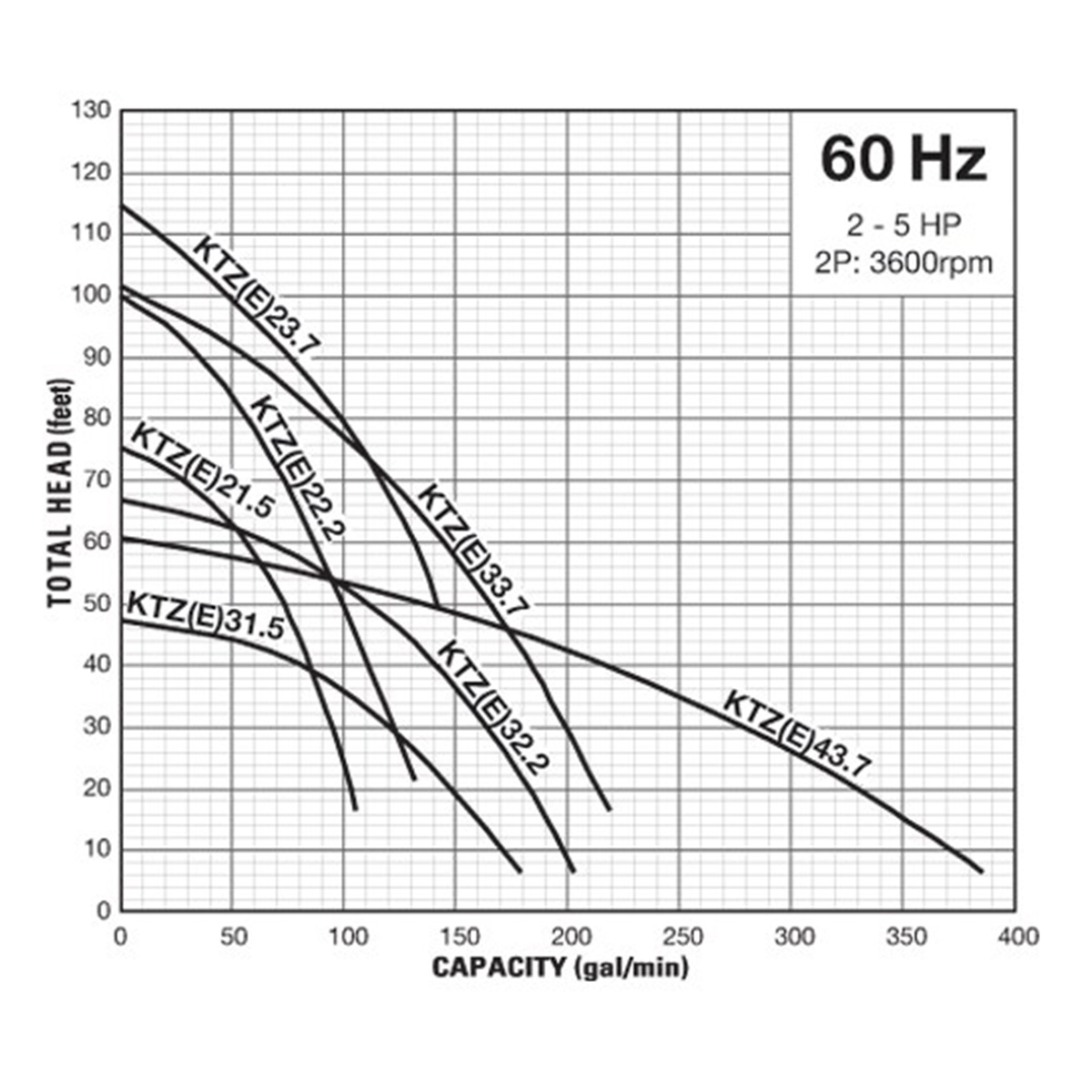

Performance Curves
