LHW Series
LHW series pumps boast remarkable high head capabilities, featuring dual staged enclosed impellers among other engineered components. These durable pumps address long-distance water transfer needs effectively.
Features
- Discharge sizes ranging from 2 to 4 inches and horsepower from 4 to 150 hp
- Enhanced wear resistance with replaceable and adjustable high chrome wear rings
- Built-in thermal and amperage protectors to prevent motor failure in run-dry or surge conditions
- High pressure dual silicon carbide mechanical seals operating in a separate oil chamber, capable of withstanding depths of up to 328 feet
- Seal pressure relief ports offering a flow path above the pump casing, safeguarding mechanical seals from excessive pumping pressure or water hammer in high head pumping applications
- Anti-wicking cable entrance and Tsurumi's exclusive oil lifter for added protection
Type
Submersible Pumps
Brand
Tsurumi
Power
4-150 hp
Discharge
2-4 in
RPM
3385-3570
Maximum Capacity
528 gpm
Maximum Pressure
755 ft
| Model | Discharge Size (in) | Motor Output (hp) | Diameter (in) | Height (in) | Max Solid Diameter (in) | Weight (lbs) |
|---|---|---|---|---|---|---|
| LH23.0W | 2 | 4 | 7 5/16 | 24 13/16 | 0.236 | 101 |
| LH25.5W | 2 | 7.5 | 9 5/8 | 29 1/2 | 0.236 | 176 |
| LH311W | 3 | 15 | 10 5/8 | 40 5/16 | 0.236 | 287 |
| LH322W | 3 | 30 | 13 | 48 5/8 | 0.236 | 670 |
| LH430W | 4 | 40 | 14 3/8 | 54 1/8 | 0.236 | 714 |
| LH4110W | 4 | 150 | 24 1/2 | 71 7/8 | 0.315 | 2800 |

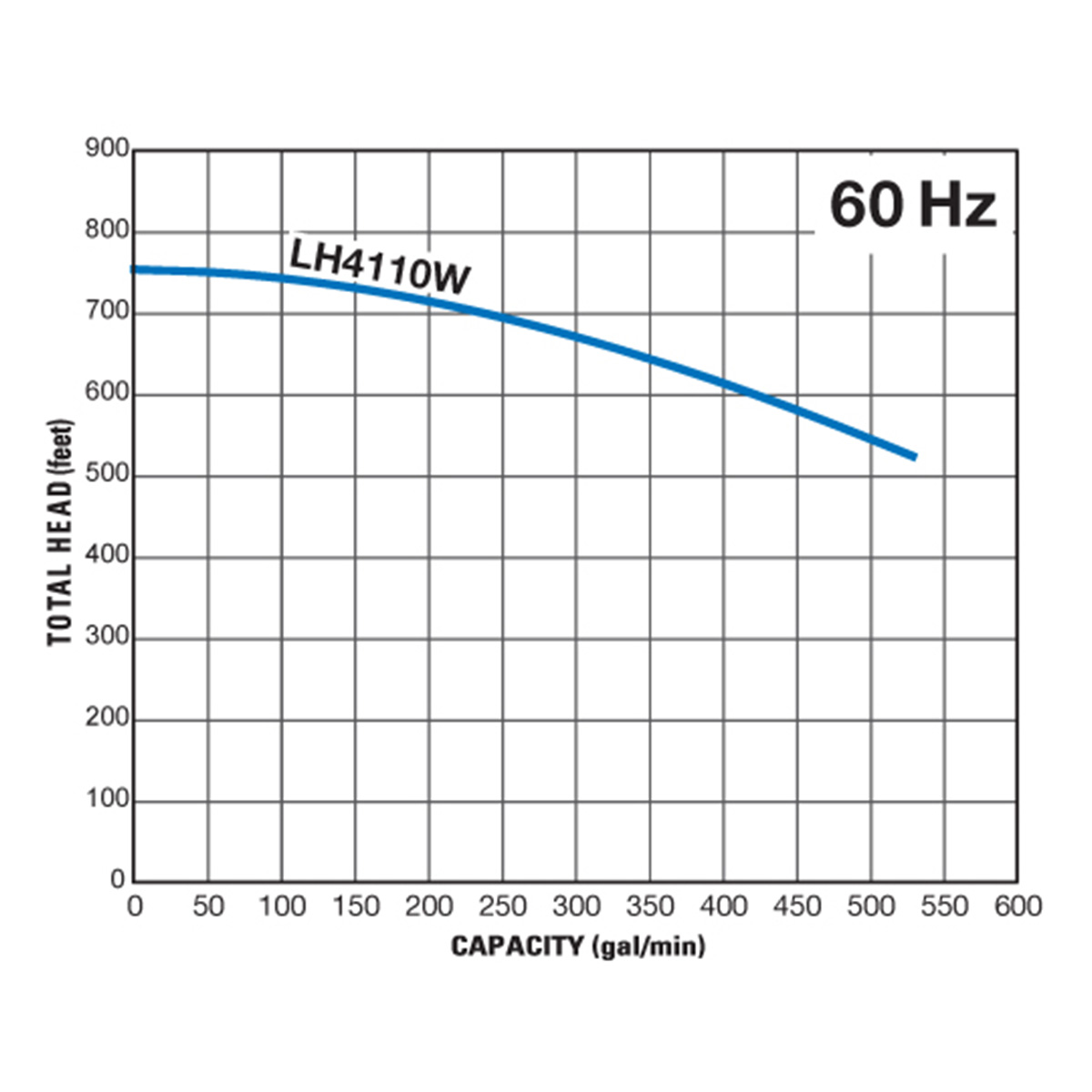

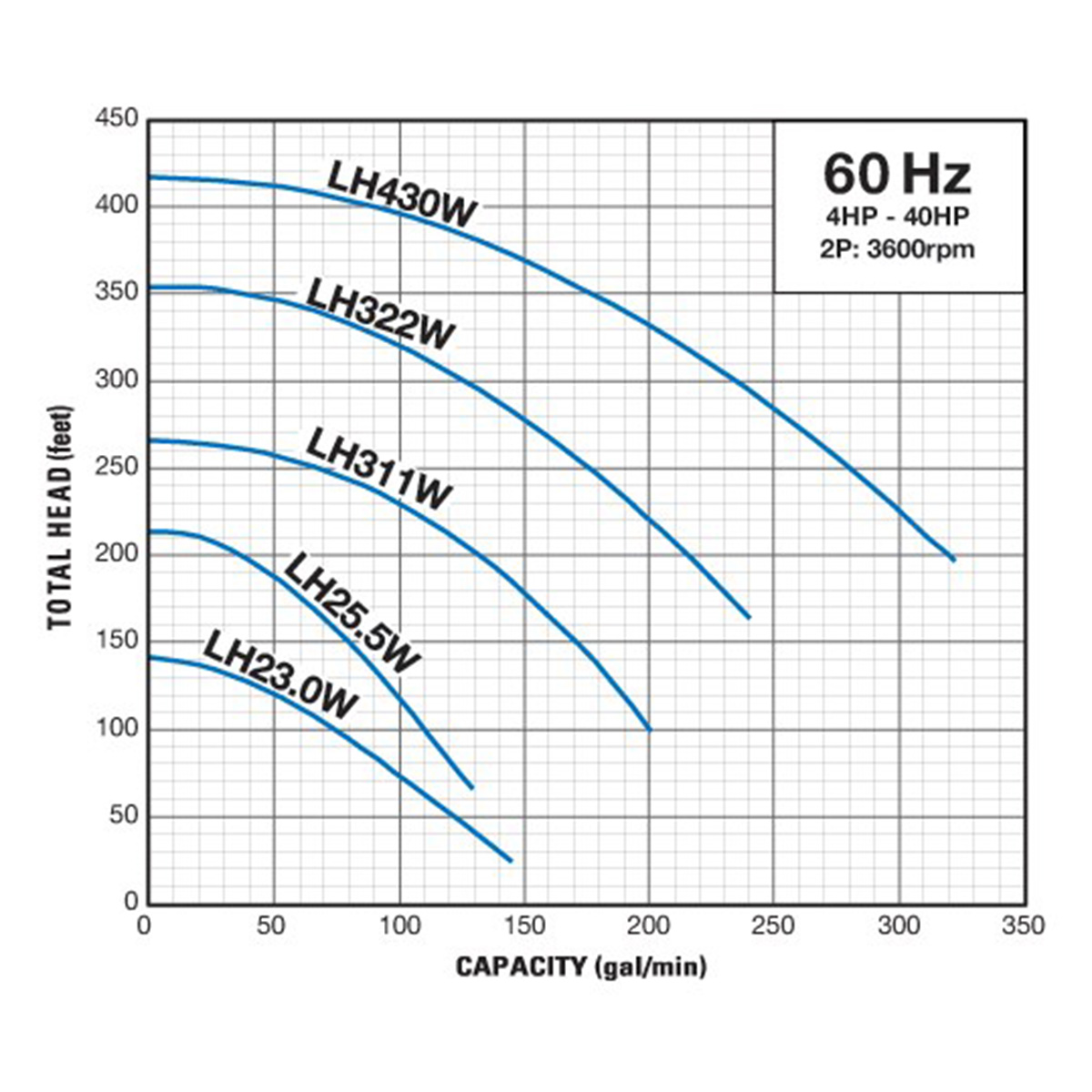

Performance Curves
Dimensional Drawing
Sectional View
