Submersible Pumps
LH(W) SS Series
Products
Technical specifications
LH(W) SS Series
The LH/LHW Stainless Steel Series represents a submersible pump with a high head and corrosion-resistant features, specifically designed for the efficient handling of aggressive and corrosive liquids. Constructed with 316 stainless steel for all wetted parts, this pump is well-equipped to endure challenging conditions commonly encountered in construction and mining applications. The LH-14 is characterized by a single impeller crafted from 316 stainless steel, while the LHW-14 boasts dual impellers with the same material.
Tsurumi’s LH Series excels in managing medium to high flows at elevated heads, and its top discharge flow-through design allows for effective operation even at low water levels for extended durations. Equipped with a high chromium semi-open impeller and adjustable wear rings, our LH pumps offer enhanced wear resistance. Whether the application involves effluent transfer, construction site drainage, or commercial/industrial dewatering, our LH Series is a reliable solution.
Type
Submersible Pumps
Brand
Tsurumi
Power
15-150 hp
Discharge
2-8 in
RPM
3600
Maximum Capacity
1420 gpm
Maximum Pressure
355 ft
| Model | Discharge Size (in) | Motor Output (hp) | Diameter (in) | Height (in) | Max Solid Diameter (in) | Weight (lbs) |
|---|---|---|---|---|---|---|
| LH422-14 | 4 | 30 | 16 9/16 | 53 1/4 | 0.236 | 815 |
| LH637-14 | 6 | 50 | 20 7/8 | 57 | 0.236 | 1190 |
| LH6110-14 | 8 | 150 | 23 5/16 | 74 5/16 | 0.236 | 2970 |
| LH837-14 | 8 | 50 | 20 7/8 | 57 | 0.236 | 1190 |
| LH8110-14 | 8 | 150 | 23 5/16 | 74 5/16 | 0.236 | 2970 |
| LH311W-14 | 2 | 15 | 13 | 46 5/8 | 0.334 | 705 |
| LH322W-14 | 3 | 30 | 13 | 50 3/16 | 0.334 | 750 |

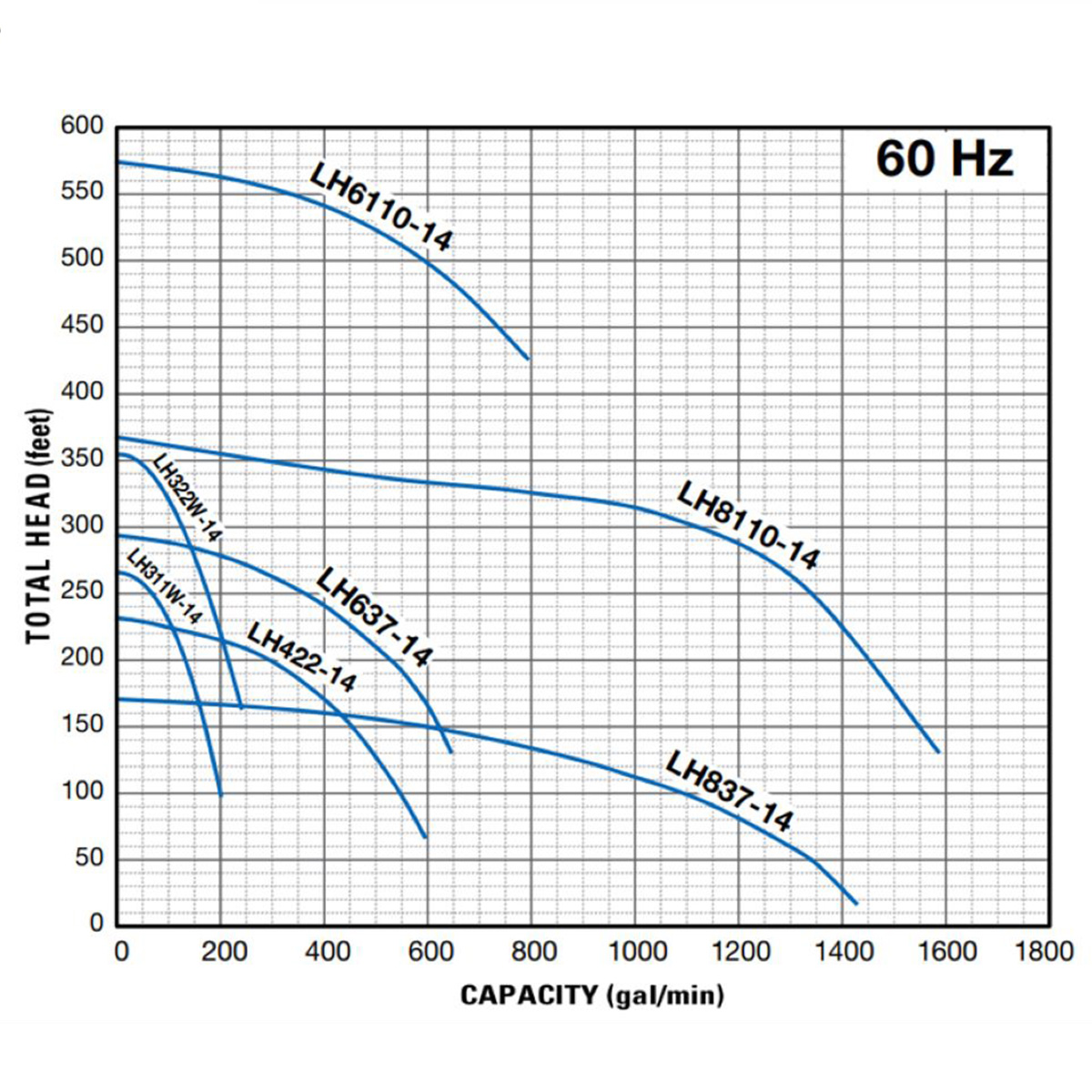

Performance Curves
Dimensional Drawing
Sectional View
