Submersible Pumps
MG Series
Products
Technical specifications
MG Series
The MG Series pumps feature a built-in grinder mechanism that finely grinds foreign matter and discharges it through a vortex impeller. They utilize this grinding mechanism in the suction port to crush foreign matter into fine particles before discharging waste.
Features
- Semi-vortex high chrome impeller
- High chromium grinder mechanism
- Ideal for small-scale sewage systems
Type
Submersible Pumps
Brand
Tsurumi
Power
2-5 hp
Discharge
2 in
RPM
3410-3490
Maximum Capacity
87 gpm
Maximum Pressure
115 ft
| Model | Discharge Size (in) | Motor Output (hp) | Diameter (in) | Height (in) | Max Solid Diameter (in) | Weight (lbs) |
|---|---|---|---|---|---|---|
| 50MG21.5 | 2 | 2 | 14 5/16 | 21 15/16 | 0.197 | 79 |
| 50MG22.2 | 2 | 3 | 17 1/4 | 23 3/8 | 0.197 | 170 |
| 50MG23.7 | 2 | 5 | 17 1/4 | 23 3/8 | 0.197 | 172 |

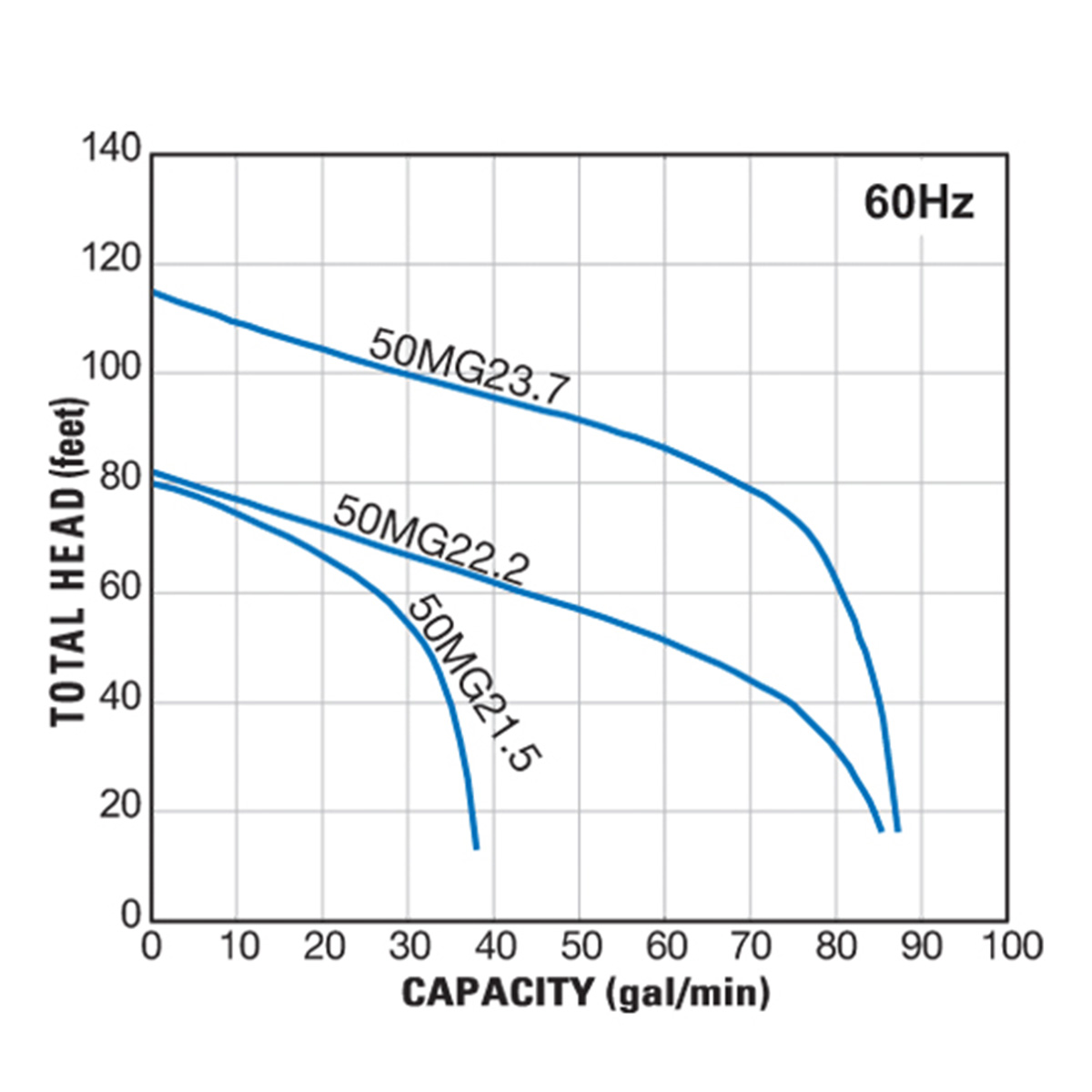

Performance Curves
Dimensional Drawing
Sectional View
