Submersible Pumps
PU Series
Products
Technical specifications
PU Series
The PU Series pumps, equipped with a semi-vortex type impeller, are submersible solids handling pumps designed for efficient passage of solids and stringy materials in residential, commercial, and industrial sewage, as well as site drainage
Note that Automatic (A) and Auto-Alternating (W) versions should not be used with VFD’s, which can cause damage to the float circuitry.
Features
- Versatile voltage options: single-phase (1/5-1HP, 115V, 230V) and three-phase (1/3-5HP, 208-220V, 460V, 575V)
- Constructed with corrosion-resistant materials
- Automatic (A) and Auto-Alternating (W) versions offered in all sizes
- Equipped with a watertight cable entrance featuring an anti-wicking block
- Incorporates permanently lubricated sealed ball bearings with a B-10 rating of 60,000 hours
- Built-in motor protection for enhanced safety
- Features a continuous-duty, air-filled, copper-wound motor that is highly efficient
- Boasts a corrosion-resistant stainless steel motor casing
- Dual inside mechanical design with Silicon Carbide vs. Ceramic bottom faces
- Includes a ball-type air relief valve
- Utilizes a semi-vortex impeller for effective solids handling
- Comes with a 32ft. power cord
- Options available for Automatic Operation (PUA) and Auto Alternating (PUW)
Type
Submersible Pumps
Brand
Tsurumi
Power
1/3-5 hp
Discharge
2-3 in
Maximum Capacity
240 gpm
Maximum Pressure
87 ft
| Model | Discharge Size (in) | Motor Output (hp) | Diameter (in) | Height (in) | Max Solid Diameter (in) | Weight (lbs) |
|---|---|---|---|---|---|---|
| 50PU2.15S | 2 | 1/5 | 8 7/8 | 14 13/16 | 1.38 | 13 |
| 50PU2.25S | 2 | 1/3 | 9 5/16 | 14 3/16 | 1.38 | 16 |
| 50PU2.4S | 2 | 1/2 | 9 5/16 | 14 3/16 | 1.38 | 49 |
| 50PU2.75S | 2 | 1 | 9 5/16 | 14 15/16 | 1.38 | 20 |
| 50PU2.25 | 2 | 1/3 | 9 5/16 | 13 3/4 | 1.38 | 14 |
| 50PU2.4 | 2 | 1/2 | 9 5/16 | 14 3/16 | 1.38 | 16 |
| 50PU2.75 | 2 | 1 | 9 5/16 | 14 3/4 | 1.38 | 19 |
| 80PU21.5 | 3 | 2 | 11 5/8 | 18 11/16 | 1.81 | 36 |
| 80PU22.2 | 3 | 3 | 12 1/4 | 22 15/16 | 1.81 | 49 |
| 80PU23.7 | 3 | 5 | 12 1/4 | 24 5/16 | 1.81 | 60 |

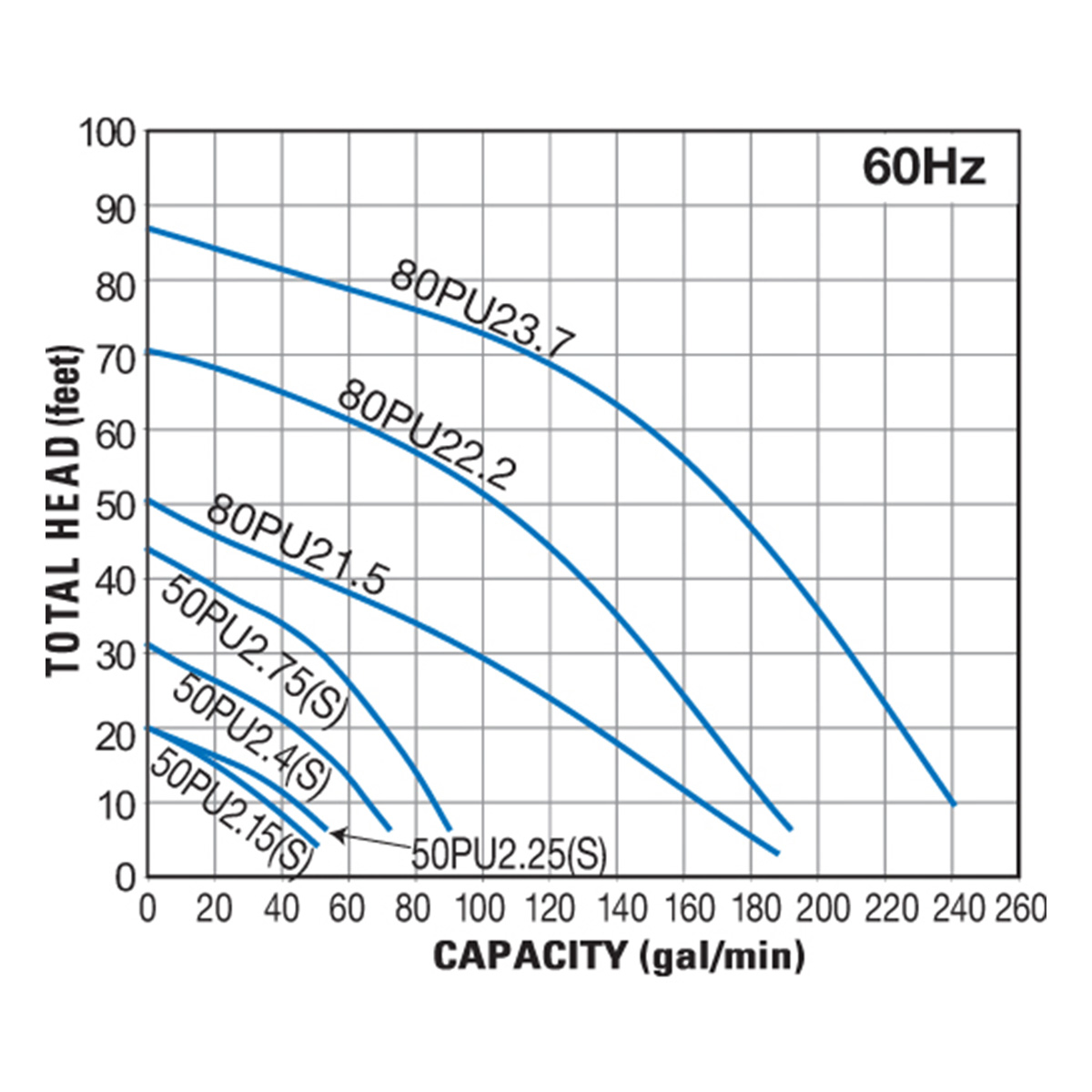

Performance Curves
Dimensional Drawing
Sectional View
Parts List
