Engine Driven Pumps
THHAP Series
Products
Technical specifications
THHAP Series
Designed for efficiency, ease-of-maintenance, and long-service life, Technosub THHAP Series pumps are specifically constructed to handle a wide range of liquids, in a completely automatic priming pump system.
They are specifically designed to effectively handle a wide range of liquids in applications such as liquid transfer, wash down, fire protection, fracking and jetting where high heads and pressure are required. They provide a dependable, highly efficient solution in a completely automatic priming pump.
Features
- Fuel tanks for extended run times and/or remote location
- Modular trailer kit
- Trailer brakes and lights
- SoundGuard enclosure
- Hose racks, accessory containers and other custom features available
Type
Engine Driven Pumps
Brand
Technosub
Maximum Capacity
7500 gpm
Maximum Pressure
606 ft
Operating Pressure
270 psi
Rpm
1600-1800

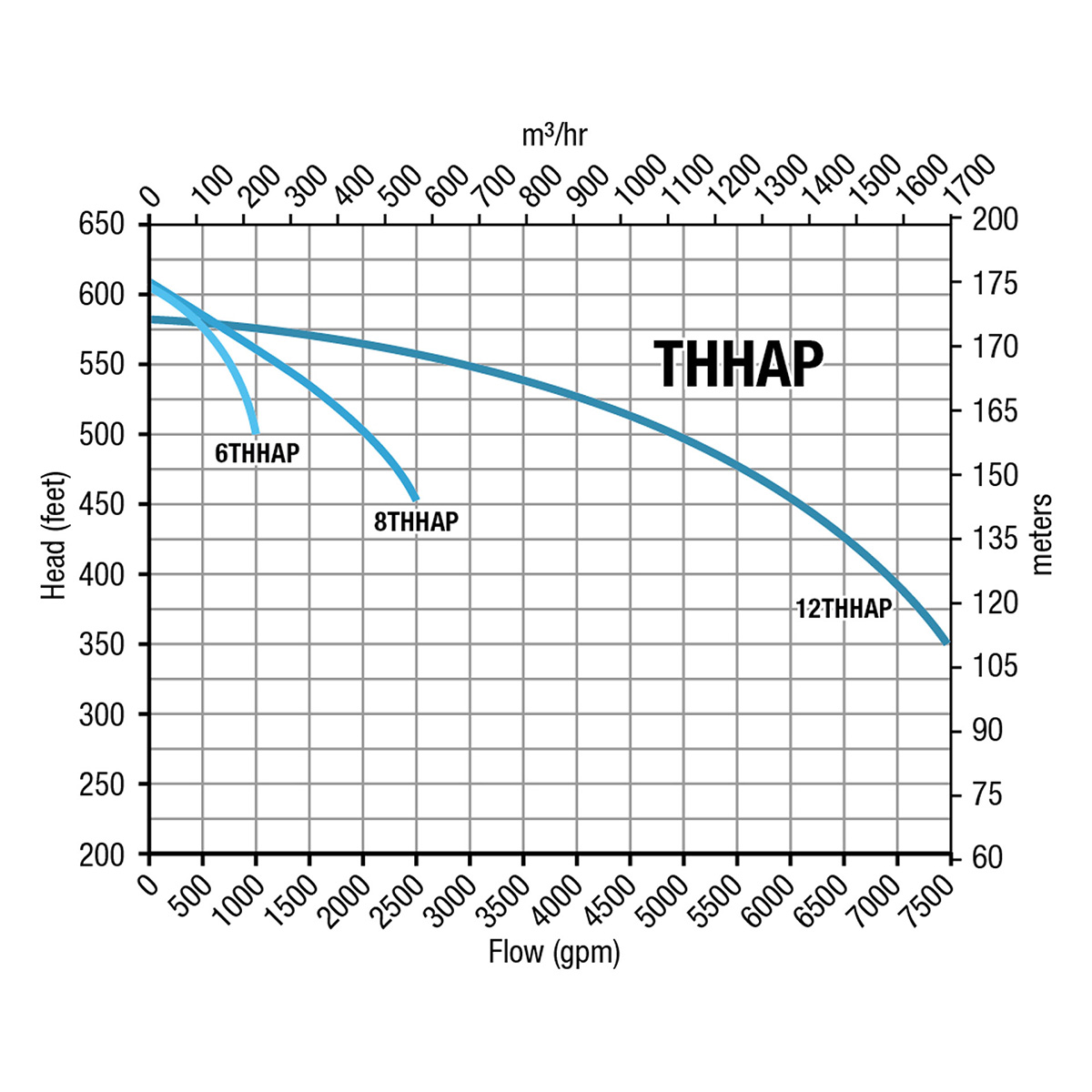

| Model | Ansi Flange (in) | Max Flow (gmp) | Max Head (ft) | Max Solids (in) | Power (hp) | Rpm |
|---|---|---|---|---|---|---|
| 6THHAP | 6 X 4 | 1250 | 606 | 0.88 | 250 | 1800 |
| 8THHAP | 8 X 6 | 2375 | 606 | 1.38 | 400 | 1800 |
| 12THHAP | 12 X 10 | 6700 | 461 | 2.5 | 600 | 1600 |
| 12THHAP | 12 X 10 | 7000 | 520 | 2.5 | 800 | 1700 |
| 12THHAP | 12 X 10 | 7500 | 582 | 2.5 | 1050 | 1800 |
