Engine Driven Pumps
TSHAP Series
Products
Technical specifications
TSHAP Series
Designed for efficiency, ease-of-maintenance, and long-service life, Technosub TSHAP Series pumps are specifically constructed to handle a wide range of liquids, in a completely automatic priming pump system.
They are specifically designed to effectively handle a wide range of liquids in applications such as liquid transfer, wash down, fire protection, fracking and jetting where high heads and pressure are required. They provide a dependable, highly efficient solution in a completely automatic priming pump.
Features
- Fuel tanks for extended run times and/or remote location
- Modular trailer kit
- Trailer brakes and lights
- Technosub SoundGuard enclosure
- Hose racks, accessory containers and other custom features available
Type
Engine Driven Pumps
Brand
Technosub
Maximum Capacity
4500 gpm
Maximum Pressure
380 ft
Operating Pressure
270 psi
Rpm
2000-2100

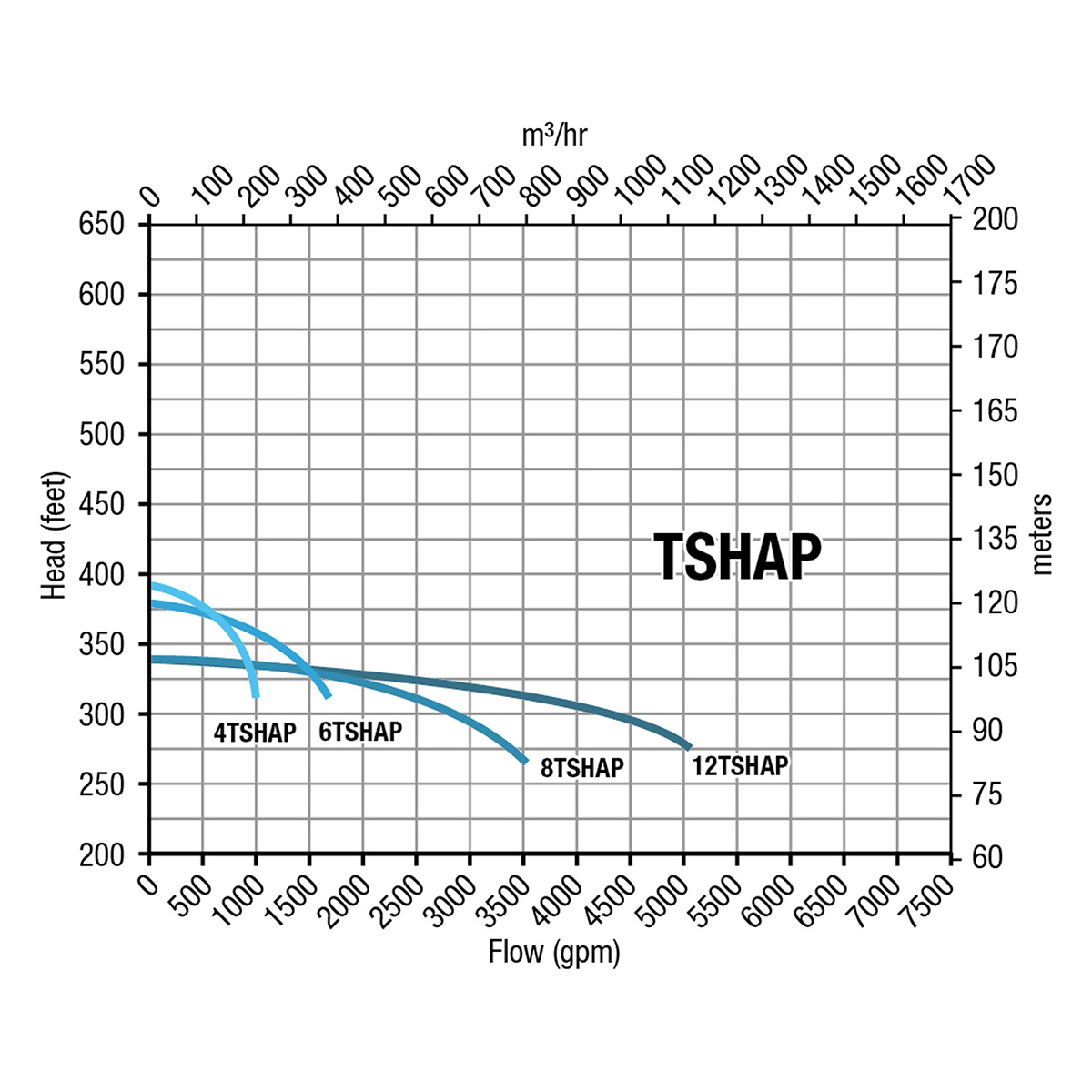

| Model | Ansi Flange (in) | Max Flow (gmp) | Max Head (ft) | Max Solids (in) | Power (hp) | Rpm |
|---|---|---|---|---|---|---|
| 4TSHAP | 4 X 3 | 1100 | 380 | 0.63 | 115 | 2100 |
| 6TSHAP | 6 X 4 | 2000 | 360 | 0.88 | 173 | 2100 |
| 8TSHAP | 8 X 6 | 3500 | 340 | 1.38 | 250 | 2000 |
| 12TSHAP | 12 X 8 | 4500 | 330 | 1.5 | 400 | 2000 |
