TSTAP Series
Designed for efficiency, ease-of-maintenance, and long-service life, Technosub TSTAP Series pumps are specifically constructed to handle a wide range of liquids, in a completely automatic priming pump system.
They are specifically designed to effectively handle a wide range of liquids from water and sewage, to sludge that can contain solids and other material. With advanced enclosed impeller design, they provide a dependable, highly efficient solution in a completely automatic priming pump.
Features
- Highest in fuel efficiency
- Ease of maintenance
- Durability
- Diesel, Electric or Hydraulic drives available
Type
Engine Driven Pumps
Brand
Technosub
Maximum Capacity
12500 gpm
Maximum Pressure
165 ft
Operating Pressure
270 psi
Rpm
1200-2200

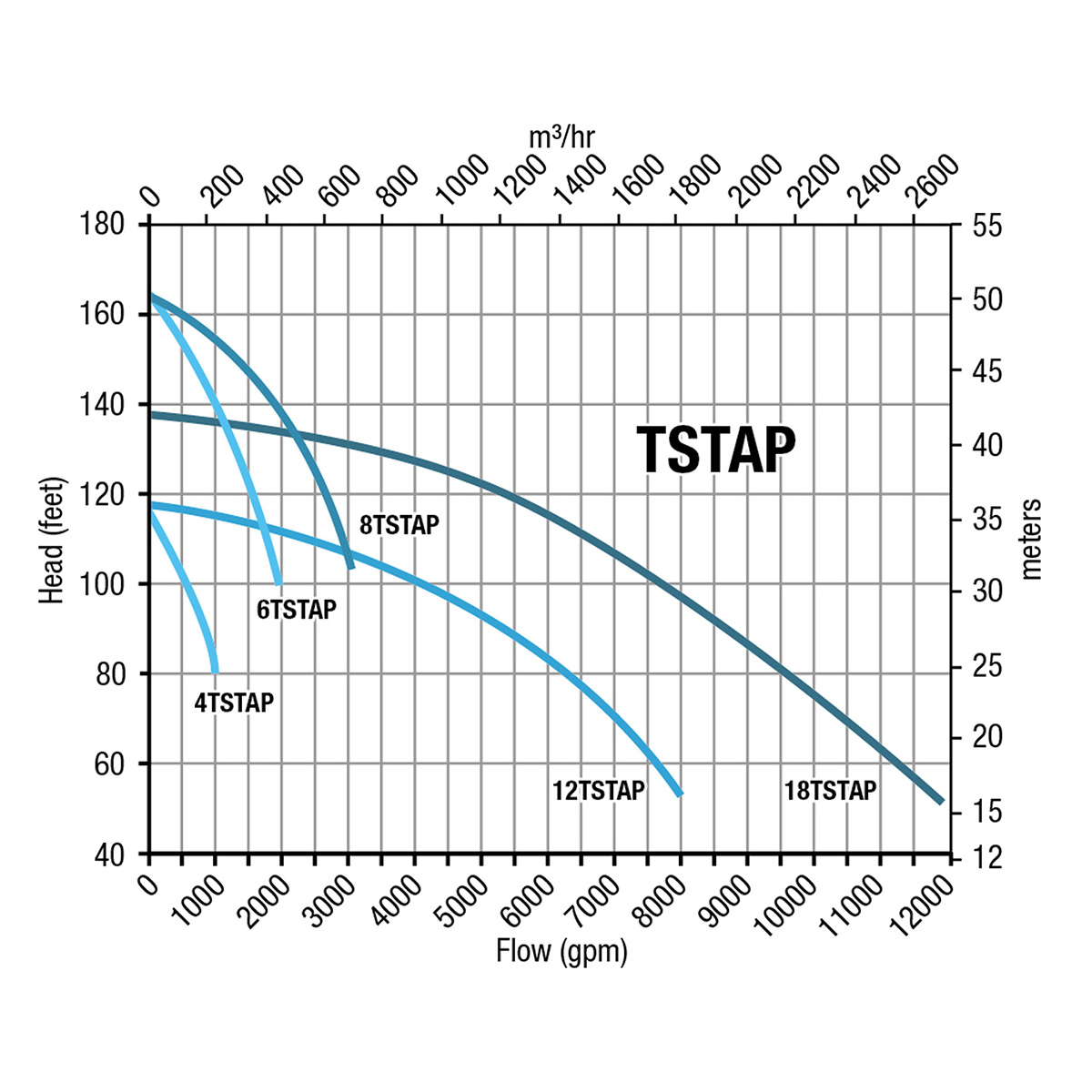

| Model | Ansi Flange (in) | Max Flow (gmp) | Max Head (ft) | Max Solids (in) | Power (hp) | Rpm |
|---|---|---|---|---|---|---|
| 4TSTAP | 4 X 4 | 1250 | 116 | 3 | 36 | 2200 |
| 6TSTAP | 6 X 6 | 2750 | 165 | 3 | 85 | 2200 |
| 8TSTAP | 8 X 8 | 3400 | 165 | 4 | 115 | 1900 |
| 12TSTAP | 12 X 12 | 8300 | 117 | 4 | 173 | 1200 |
| 18TSTAP | 18 X 14 | 12500 | 138 | 4 | 250 | 1200 |
