UZ Series
The UZ Series pumps are equipped with a recessed vortex impeller and a spacious pump casing interior, allowing efficient pumping and discharge of water containing solids and fibrous foreign matter.
Features
- Recessed vortex impeller for effective operation
- Wide pump casing to accommodate various substances
- Dual silicon carbide-faced seals, preventing spring failure due to corrosion or abrasion
- High tensile stainless steel shaft designed for full load operation
- Oil lifter ensuring continuous lubrication of seal faces, even when oil falls below the rated volume
Type
Submersible Pumps
Brand
Tsurumi
Power
1/2-1 hp
Discharge
2 in
Maximum Capacity
95 gpm
Maximum Pressure
44 ft
| Model | Discharge Size (in) | Motor Output (hp) | Diameter (in) | Height (in) | Max Solid Diameter (in) | Weight (lbs) |
|---|---|---|---|---|---|---|
| 50UZ41.5 | 2 | 2 | 15 15/16 | 22 5/16 | 1.97 | 115 |
| 80UZ41.5 | 3 | 2 | 21 5/8 | 25 1/16 | 3.15 | 141 |
| 80UZ42.2 | 3 | 3 | 21 5/8 | 25 1/16 | 3.15 | 115 |
| 80UZ43.7 | 3 | 5 | 22 11/16 | 27 1/16 | 3.15 | 154 |
| 100UZ43.7 | 4 | 5 | 25 1/2 | 29 | 3.94 | 163 |
| 80UZ45.5 | 3 | 7.5 | 24 1/8 | 35 3/8 | 3.15 | 280 |
| 100UZ45.5 | 4 | 7.5 | 26 7/16 | 36 15/16 | 3.94 | 309 |
| 80UZ47.5 | 3 | 10 | 24 1/8 | 36 1/4 | 3.15 | 115 |
| 100UZ47.5 | 4 | 10 | 26 7/16 | 37 13/16 | 3.94 | 340 |
| 80UZ411 | 3 | 15 | 24 7/16 | 38 5/8 | 3.15 | 377 |
| 100UZ411 | 4 | 15 | 26 3/4 | 40 3/16 | 3.94 | 406 |

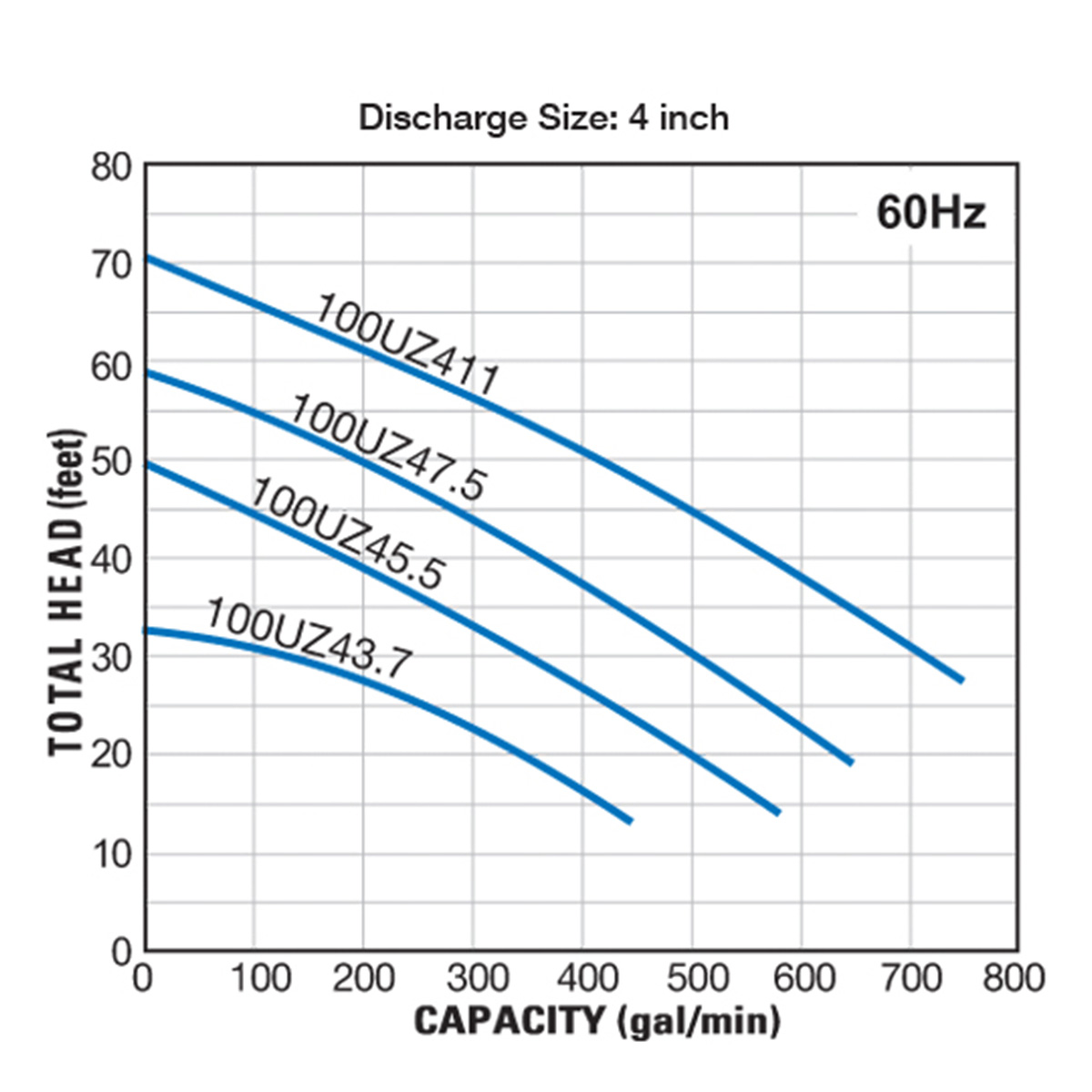

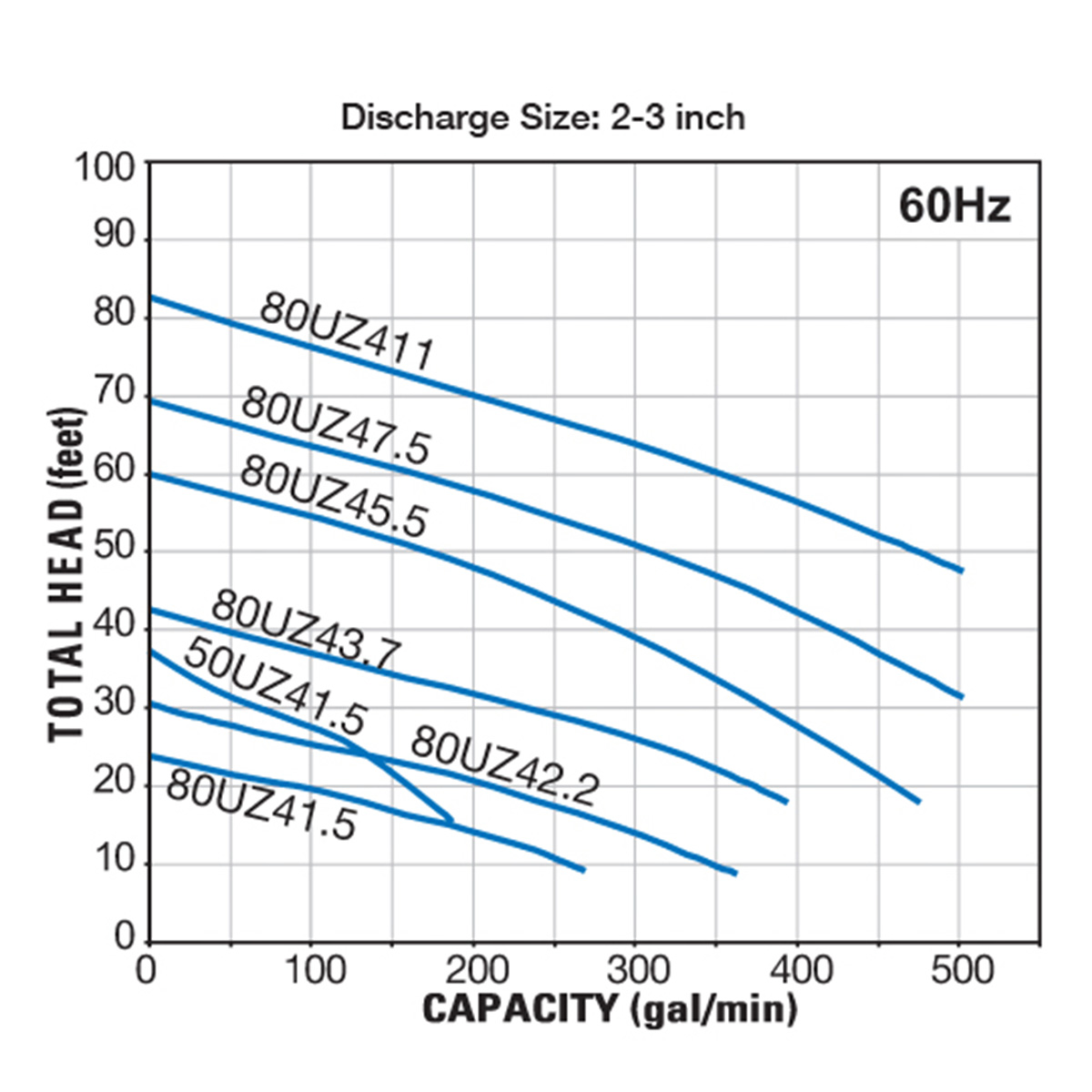

Performance Curves
Dimensional Drawing
Sectional View
Parts List
