Booster pumping station and deep well pumping station
Mandate
Manufacture of two custom pumping pump houses and supply of submersible well pumps
This mandate required delivering a robust and efficient pumping solution to support a high-flow and high-pressure water filtration system. To achieve this, we designed and manufactured two custom pumping stations. These stations were designed in accordance with applicable standards and the client’s general terms and conditions, taking into account their specific needs.
We are confident that these custom pumping solutions greatly contribute to the efficiency and durability of the water filtration system, while meeting our client’s specific needs and strict quality standards.

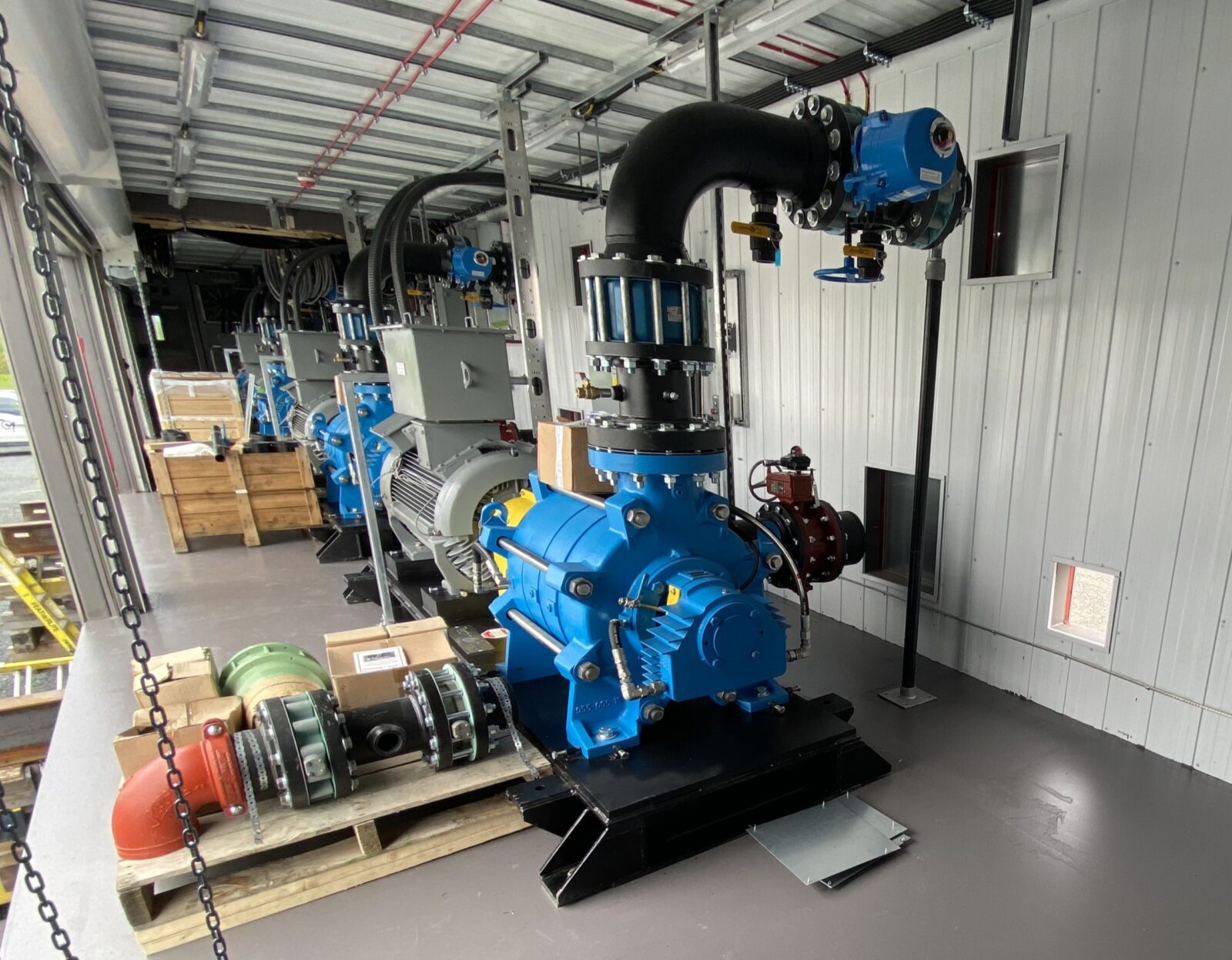

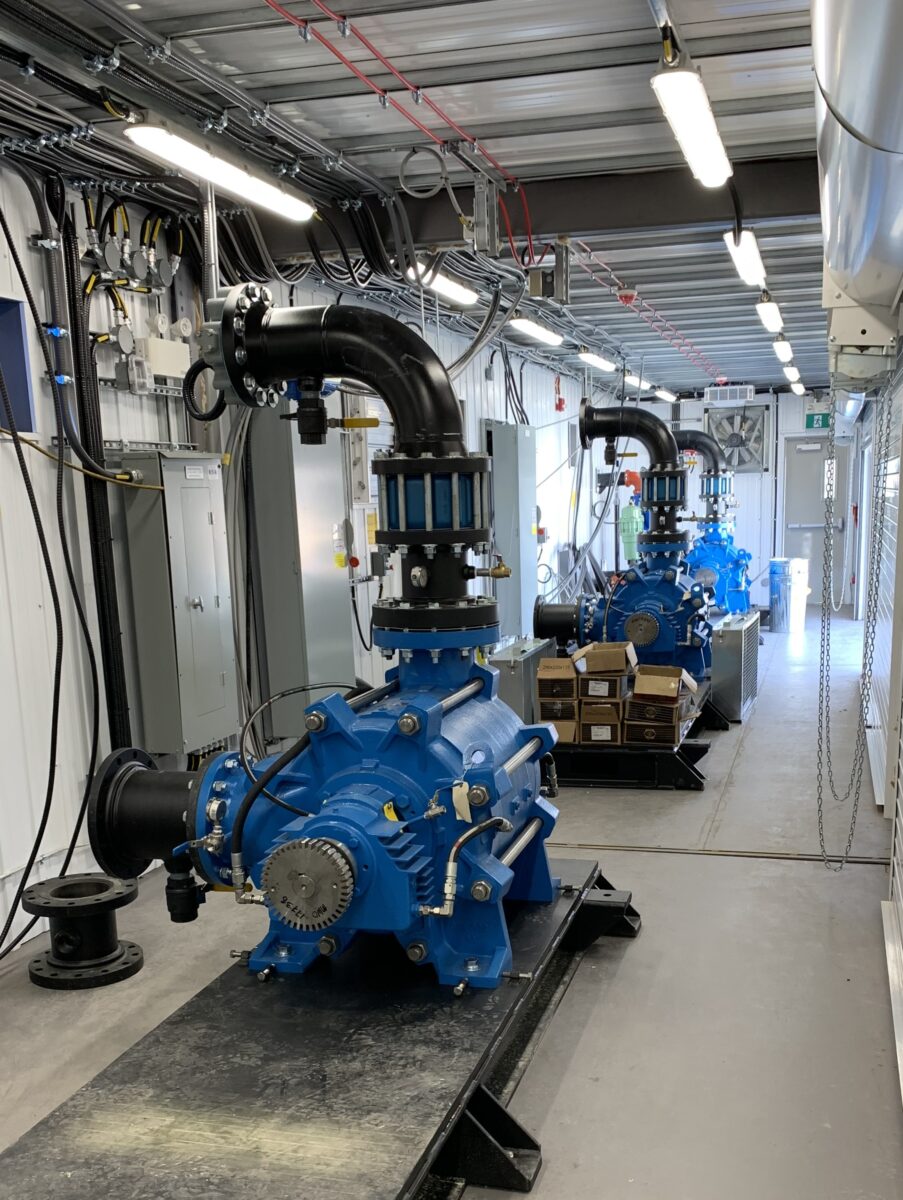

Booster pump
- 4 Technosub MH series pumps | 3 stages

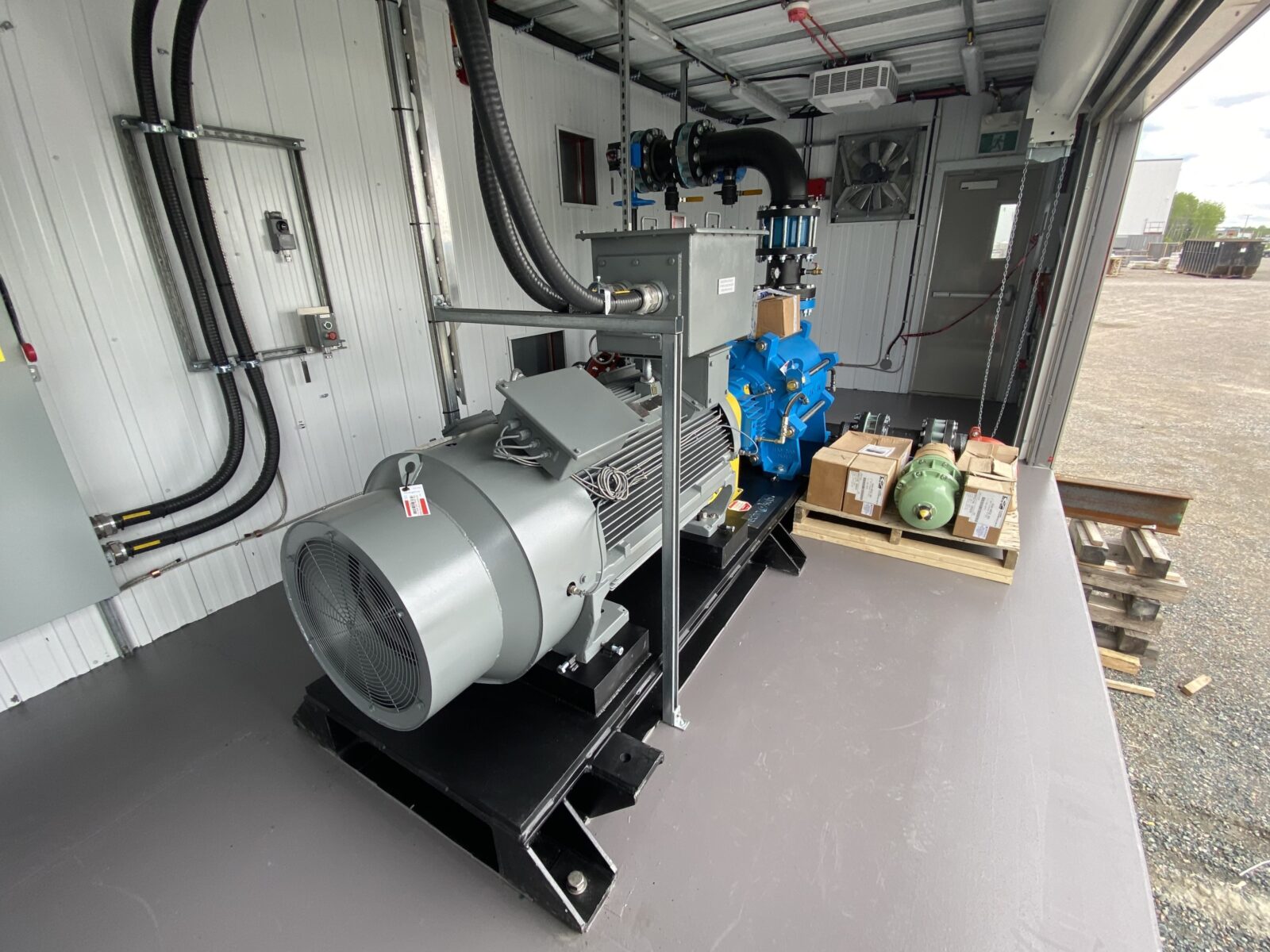

- Teco Westinghouse motors | 500 HP | 1800 RPM
- Capacity: 8000 GPM at 285 PSI
Pit pump
- 6 Grundfos pumps
- Subteck motor | 250 HP
- Capacity: 4800 GPM at 350 PSI
Details
Strengths
The booster stations were designed to be larger than our usual models
The increased space makes it easier to move around.
High-pressure pumping volume
Garage door installation
Provides easier access to pumps in case of maintenance.
Building customized and adapted to the client’s preference and needs
Transportation of large equipment by truck
More than 3,000 km from the Rouyn-Noranda manufacturing site.
Challenges
Large areas of water need to be displaced
Requires a high-pressure, high-flow pumping solution.
Displacing water from decontamination pond to environment
