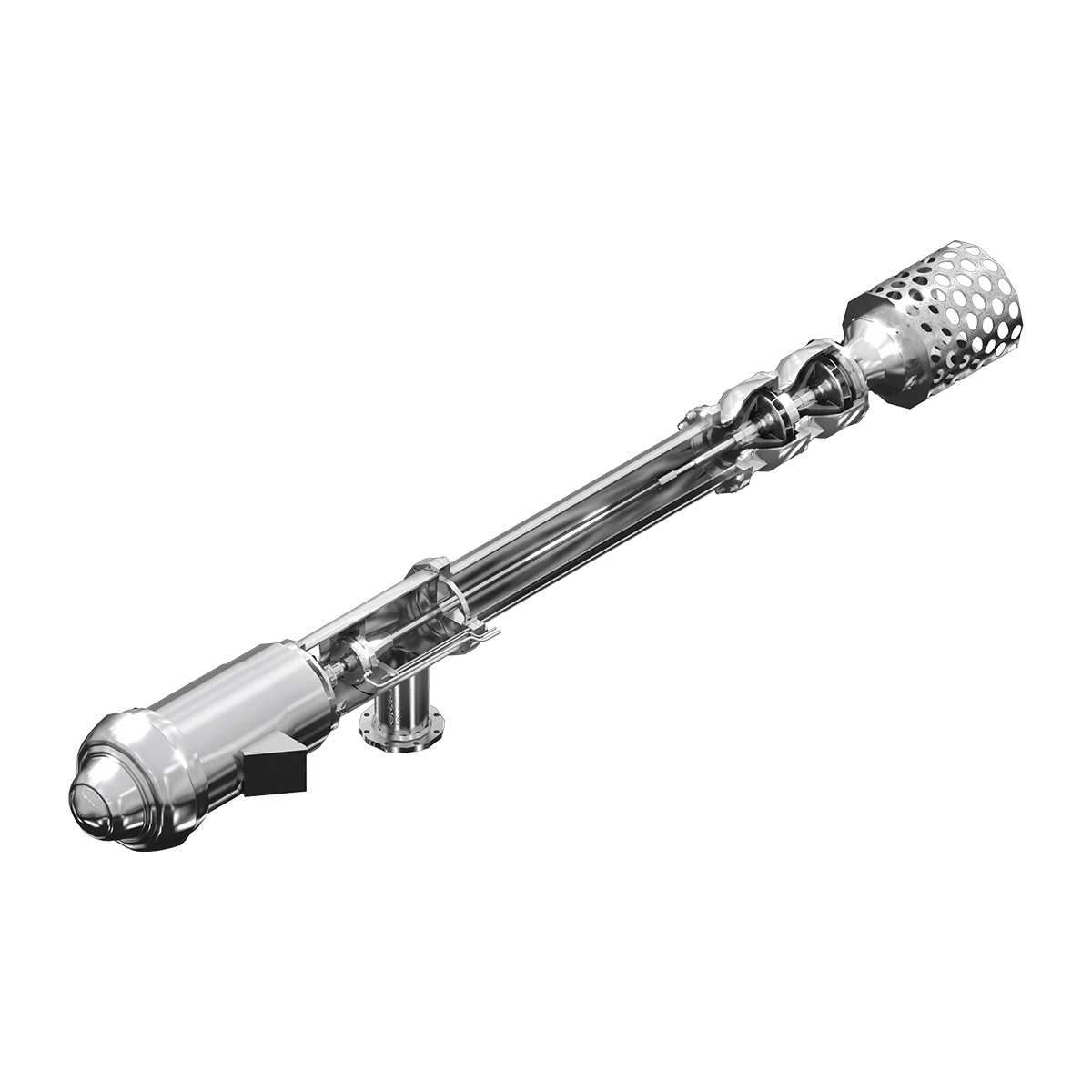

VT Series
Experience the reliability and versatility of VT series pumps designed to handle pressures up to 2200 feet.
Developed by Technosub, these pumps showcase technical expertise and are tailored to meet your specific needs upon request. The driver options include electric motors or diesel engines with an angle drive, featuring TEFC or ODP enclosures, voltage ranging from 460V to 4160V, and RPM from 500 to 3600, with power capacities from 5 to 1000 hp. The discharge head is customizable with materials such as stainless steel 316 or 304, accommodating multiple outlets in sizes ranging from 3 to 16 inches, and offering flanged, Victaulic, or NPT connections at CLASS 150 to 600. The flanged column design incorporates stainless steel 316, 304, and steel, with column sizes from 4 to 16 inches and lengths from 4 to 60 feet. The bowl assembly features impellers in stainless steel, bronze, or cast iron, available in closed, opened, and mixed flow designs, spanning single and multi-stages. The strainer is adaptable in size and material, compatible with booster adapters.
Type
Pompes à turbine verticale
Marque
Technosub
Power
5-1000 hp
Rpm
10000 gpm
Maximum Capacity
2200 ft
Maximum Pressure
270 psi
Operating Pressure
500-3600
